Optic Flow Control of Mico-Aerial Vehicle Sept 2012 - Feb 2013

I completed the work for my master's project in Radhika Napal's Self-Organizing Systems Research Group at Harvard University. I worked on vision-based control of a 30 gram autonomous micro-aerial vehicle (MAV). We used specialized vision sensors to estimate the optic flow around the helicopter. This information is then used to control the aircraft and ultimately for more complex tasks such as egomotion estimation, mapping, and coordination. We investigated strategies for indoor navigation with fully on-board computation. In order to test various sensor configurations and control strategies, I created a 3-dimensional simulation of the MAV and sensor ring using the Webots robotics simulator, along with a custom physics plugin.

micro-aerial vehicle with custom sensor ring

Collaborators: Dr. Karthik Dantu, Dr. Richard Moore, Dr. Radhika Nagpal (faculty), Dr. Dario Floreano (faculty)
Files: report, final presentation
Videos: simulation
Tags: optic flow, autonomous robots, MAVs, indoor navigation, Webots simulation, image interpolation algorithm, Harvard University, EPFL
Embedded System Development Jul 2012 - Sept 2012

As an electrical engineering intern at Synapse Product Development in Seattle, I helped prototype, design, test, repair, document, and deliver embedded systems for client projects. Details cannot be revealed under non-disclosure agreement.

Synapse confidential

Collaborators: Synapse Product Development team
Tags: product development, electrical engineering, embedded systems, circuit design
3D Computational Fly Feb 2012 - Jun 2012

This semester project, undertaken at the EPFL Laboratory of Intelligent Systems, involved the development of a biologically-accurate 3D simulated Drosophila melanogaster model. We collected data on Drosophila morphology using image analysis. We then used this information to create a biologically-plausible fly model in the Webots simulation software and developed controllers to coordinate the 36 degrees of freedom. Using biological data from high-speed video, we created a hand-tuned controller that matched the alternating tripod gait observed in Drosophila. The control structure and model itself can be easily adapted to answer a variety of control-related questions related to biology and robotics.

To test how well adapted the biological gait is for speed, we used particle swarm optimization (PSO) to optimize the phase difference between independent, hand-tuned leg oscillators to maximize the speed of locomotion. Through this we found four emergent gaits, all of which are faster than the hand-tuned controller. These novel gaits can be used to increase the walking speed of ground hexapod robots (sacrificing stability for speed). Our findings suggest that a real-world fitness function likely includes include additional factors such as energy consumption, stability, and maneuverability. Furthermore, our testing emphasizes the importance of claw adhesion in the development of insect walking.

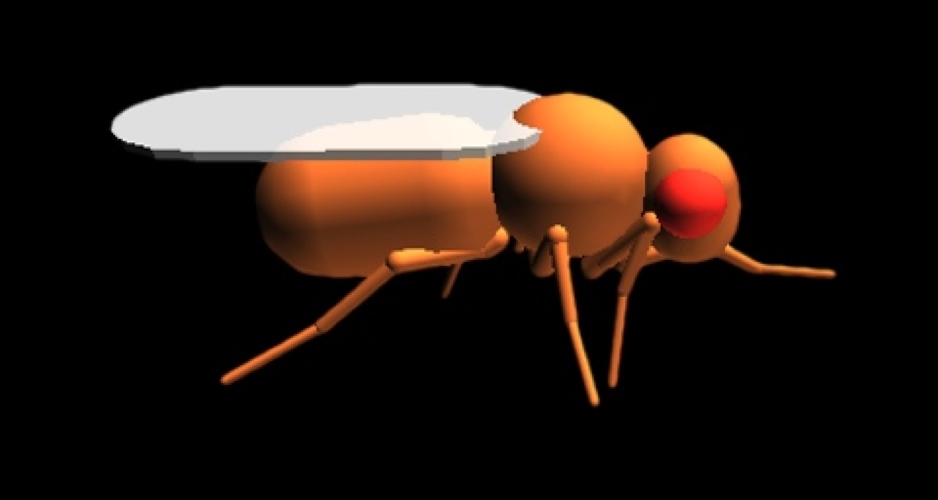

Drosophila melanogaster model

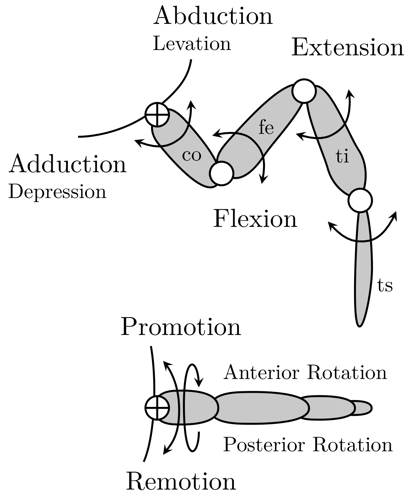

leg degrees of freedom

model of right foreleg

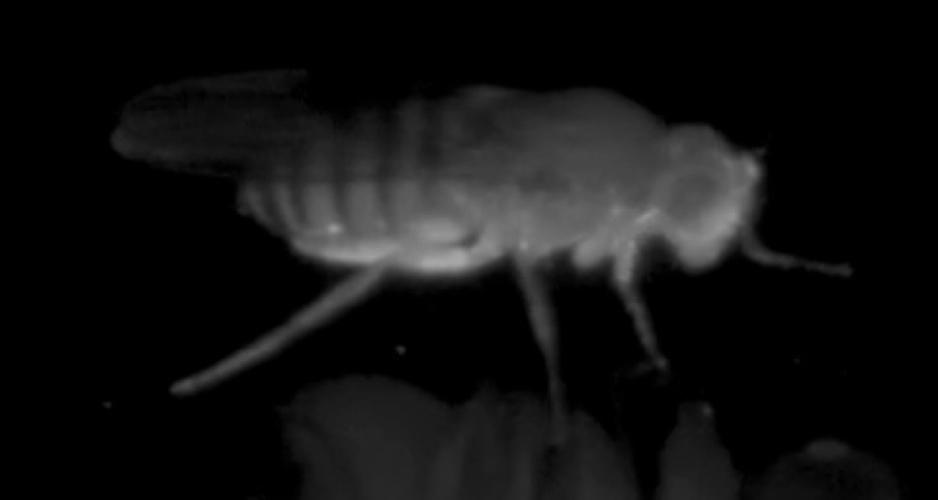

high speed video of live Drosophila

3D model with hand-tuned controller

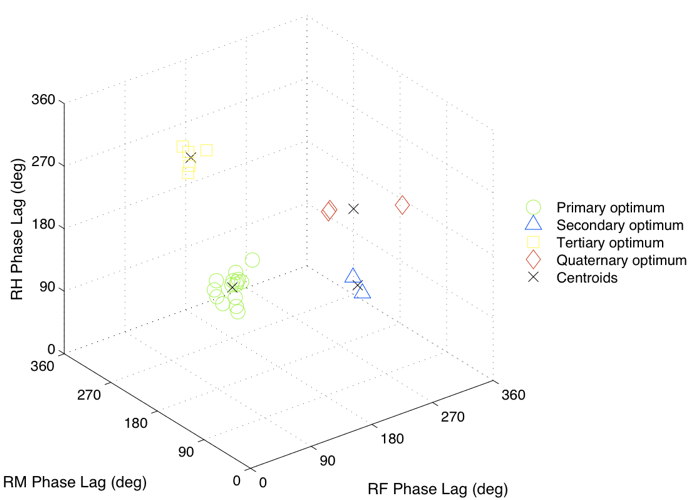

k-means cluster analysis of PSO results (subset of dimensions)

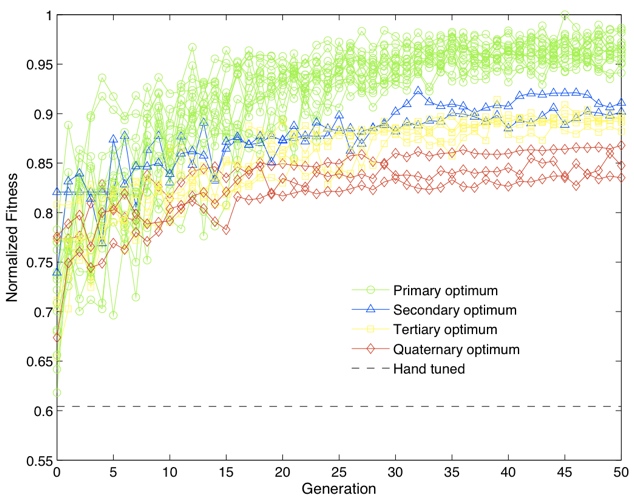

evolution of fitness over time

Collaborators: Dr. Pavan Ramdya, Dr. Dario Floreano (faculty)
Files: report, final presentation
Videos: evolved gaits
Tags: Drosophila melanogaster, insect locomotion, particle swarm optimization, gait analysis, robotics, Webots, Python programming, EPFL
Modular Power Strip Feb 2012 - May 2012

As an exercise in product design for my Computer-Aided Engineering course, we refined the design of a modular power strip. Our design uses reconfigurable blocks to create a highly-adaptable power solution. It allows the user to define the size, shape, orientation, and functions of the power strip based on their particular needs. The design has several unique interactions: it can easily be expanded with new plugs; it can be arranged to eliminate "lost" plugs; it can be adapted to fit in particular spaces; it can include blocks for specialized uses (USB chargers, remote switches, etc.); it can have additional switches to turn off a subset of plugs; and it can be updated based on evolving technological needs.

engineering model of modular power strip

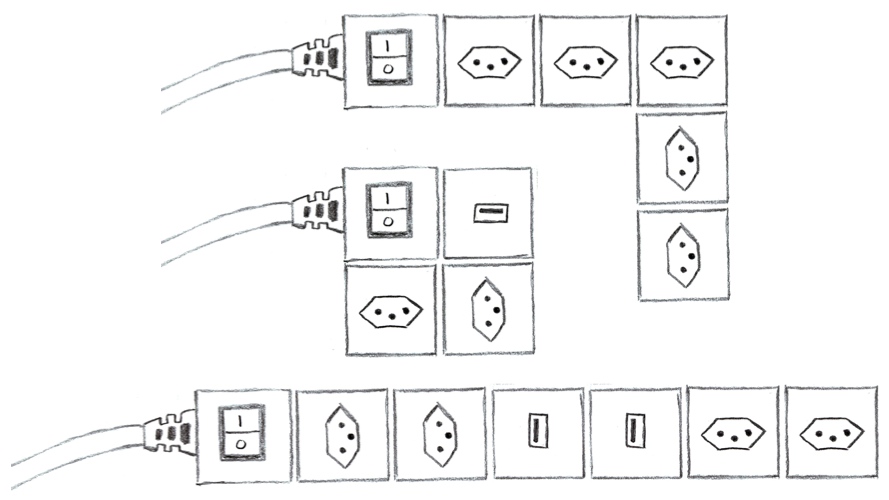

concept sketch

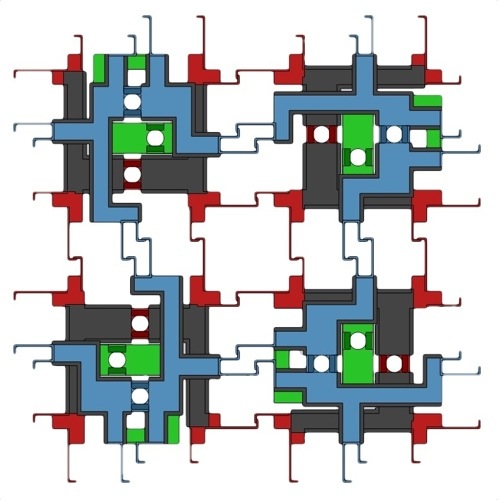

possible configurations

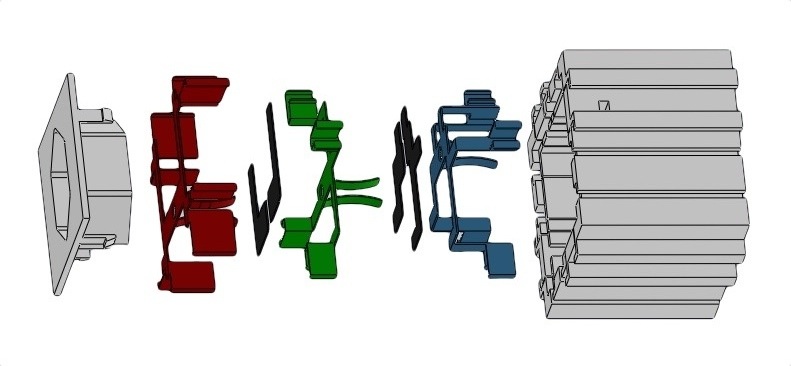

exploded view of assembly

power connections

Collaborators: Lukas Frisch, Philipp Favre, David Baumier, Yuan Xu
Files: report
Tags: product design, power strip, modularity, CAD, design for manufacturing, EPFL
Lane-Following Mobile Robot May 2012

As a mini project in our Mobile Robots course, two classmates and I created a simple, autonomous lane-following robot. Using an e-puck and iPhone camera, the robot detected lane boundaries and autonomously centered itself.

modified e-puck robot

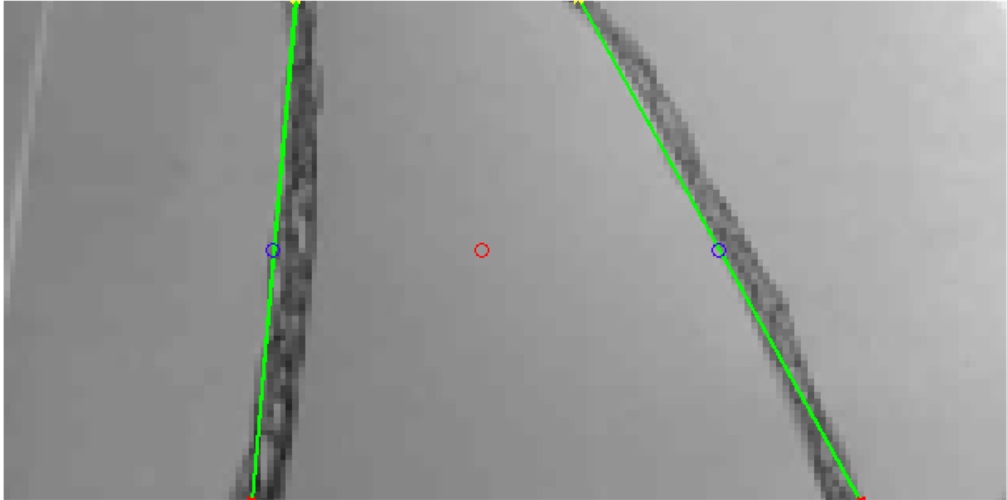

detected lane boundaries

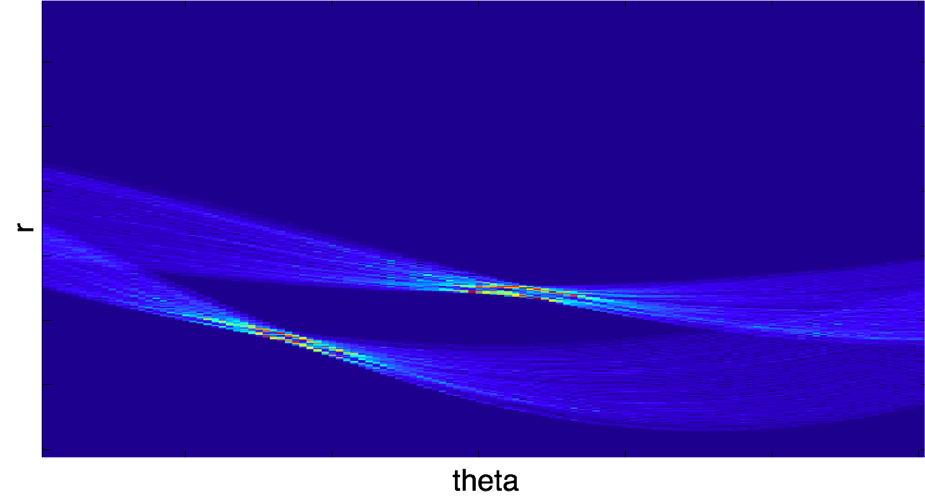

edges in Hough space

Collaborators: Axel Ringh, Isak Tjernberg
Files: presentation
Videos: demo
Tags: lane detection, autonomous mobile robots, e-puck, MATLAB, computer vision, Hough transform, EPFL
Control of a Modular Robotic Fish May 2012

For this project, we programed a autonomous controller for a modular, robotic fish. The waterproof, boxfish-like robot is built using 3 modules from the Salamandra robotica II platform: a passive head, a midsection with pectoral fins, and a tail. We implemented a sine-based controller (which represents a propagating wave from the body to the caudal fin) on the robotic fish to make the robot swim. We also implemented a closed-loop controller using an external tracking system to center the robot in the pool.

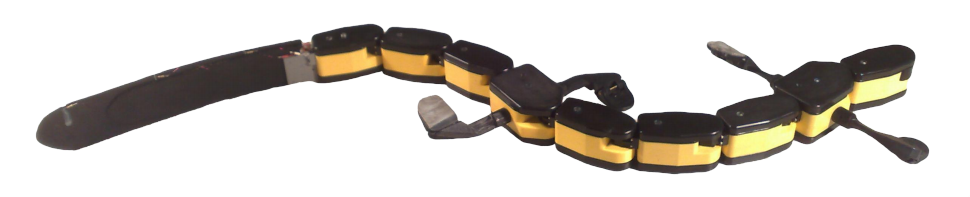

Salamandra robotica II modular robot (source: EPFL Biorobotics Lab)

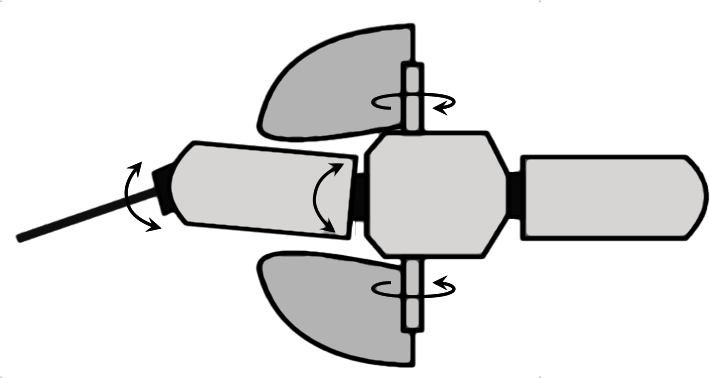

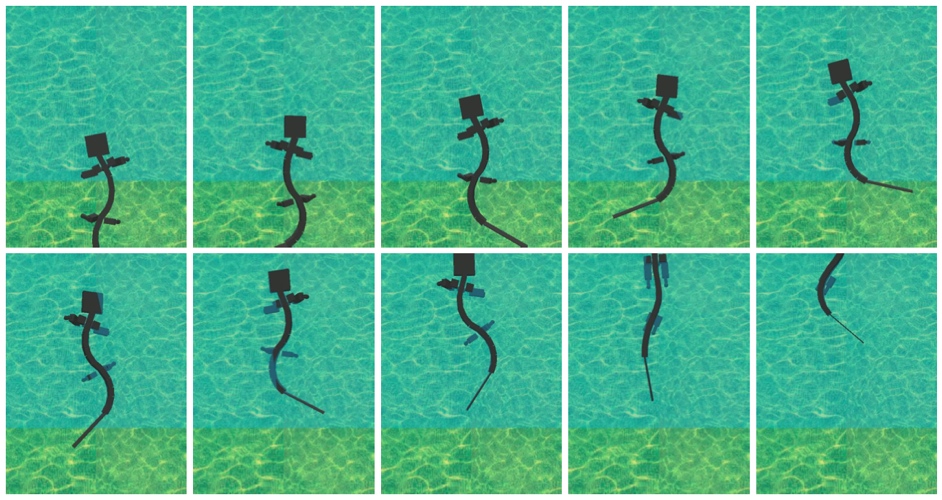

robotic fish degrees of freedom

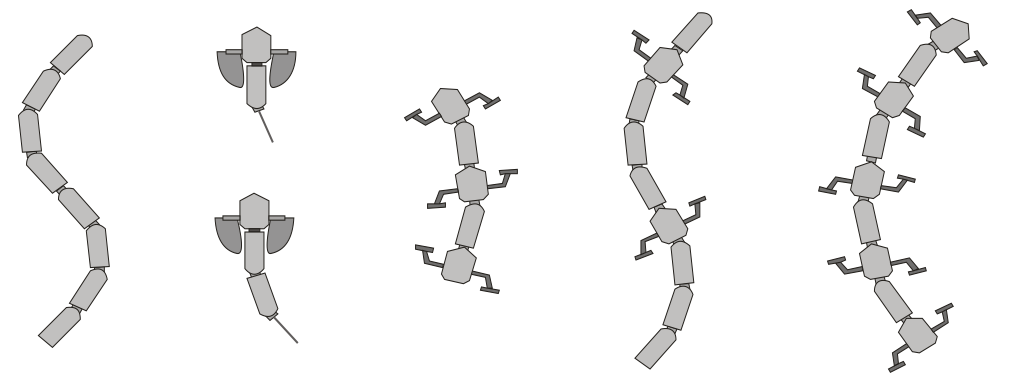

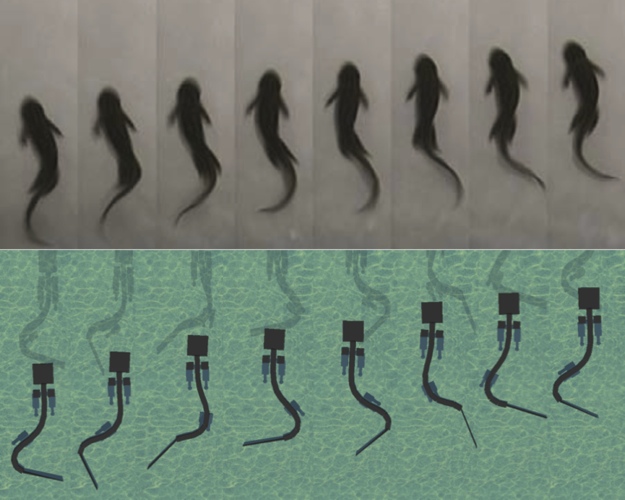

other robot configurations (source: EPFL Biorobotics Laboratory)

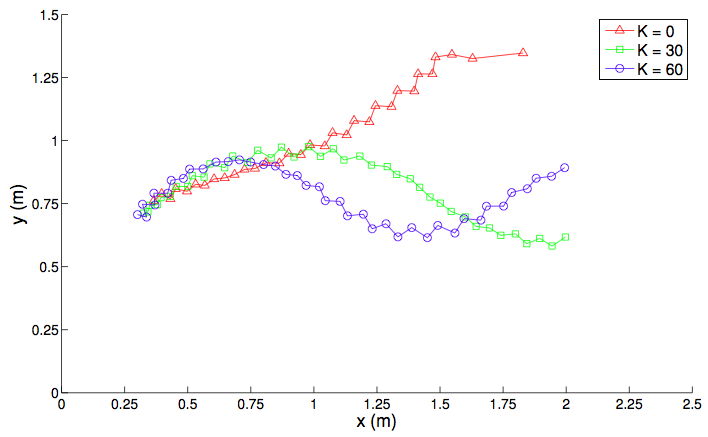

position control with different proportional gain constants

Collaborators: Frédéric Wilhelm
Files: report
Tags: modular robotics, fish, swimming, Salamandra robotica II, autonomous control, vision-based tracking, EPFL
Optic-Flow Based Mobile Robot Control Apr 2012

Optic-flow is the relative movement of the environment expressed in the reference frame of the vision system. Intuitively we know that, when we are moving, objects which appear to move more quickly through part of our visual field are closer to us, while objects that move more slowly in the same visual region are farther away. Using this idea, insects are able to quickly and robustly traverse cluttered environments. We used this notion to create a simple, reactive mobile robot controller during a two-week project for one of my courses that the EPFL. We measured the optic flow on each side of the robot using two linear cameras and used this information to control the speed and direction of the robot. We successfully used this vision system to autonomously navigate through a complex, unknown corridor.

e-puck robot with cameras

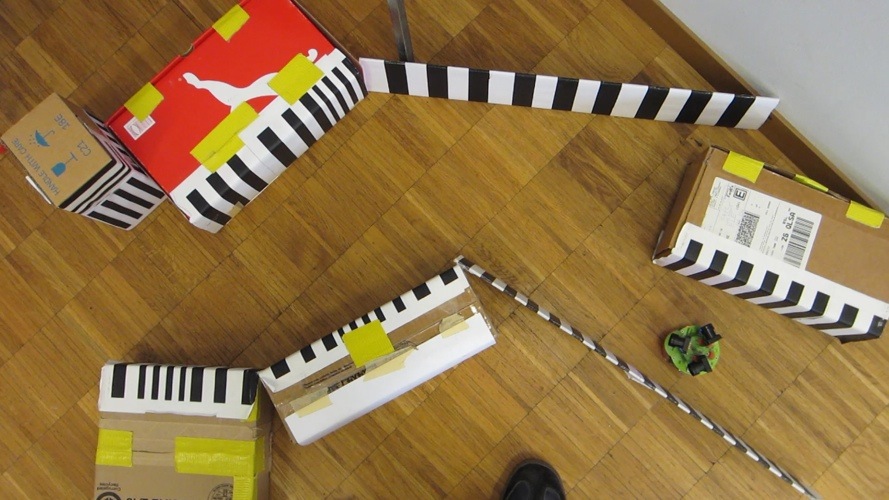

textured corridor

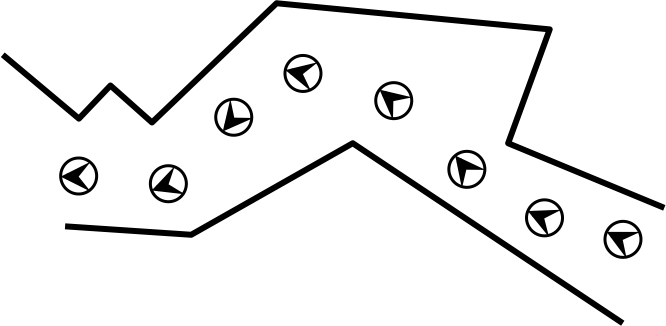

path through corridor

Collaborators: Frédéric Wilhelm
Files: report
Videos: demo
Tags: optic flow, autonomous mobile robots, e-puck, Braitenberg controller, EPFL
Mar 2012

In this two-week project, we programmed a controller for the e-puck mobile robot. We used a rotating distance sensor to observe the environment and compared sensor values to a grid of expected readings to estimate the position and orientation of the robot within a known arena. Using this position estimate and a user-defined waypoint, we determined the path using a gradient ascent algorithm.

visualization of rotating distance sensor (real resolution is 64 measurements/turn)

Collaborators: Frédéric Wilhelm
Files: report
Tags: robot navigation, position estimation, e-puck, Braitenberg controller, gradient ascent, probability map, EPFL
IR / Optical Relative Positioning System Oct 2011 - Jan 2012

As a semester project working with the EPFL Biorobotics Laboratory, I designed, built, and tested a relative positioning system for mobile robots that uses modulated infrared or visible light to determine the range and direction to a modulated source. The sensor is insensitive to ambient light differences and other environmental factors. The system also allows low bandwidth communication and can be used to detect obstacles (using an onboard transmitter). The device is smaller than existing systems, and be easily adjusted to suit new environments.

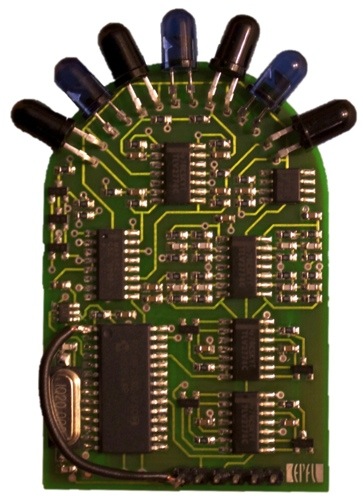

prototype transceiver

first hardware revision

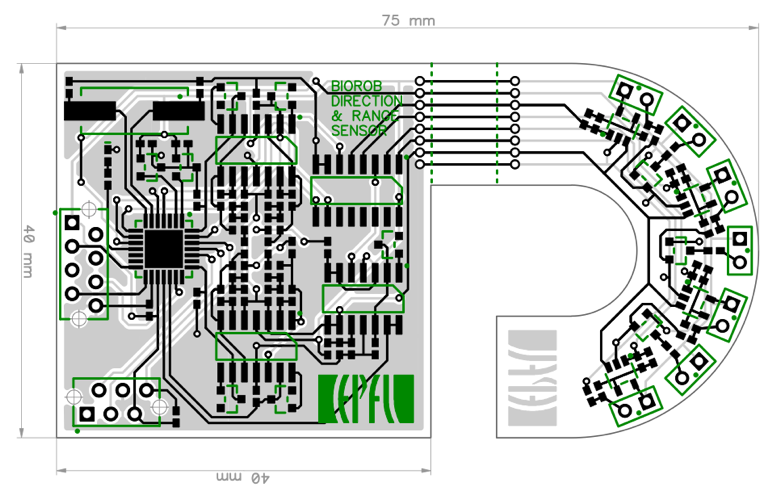

circuit board layout

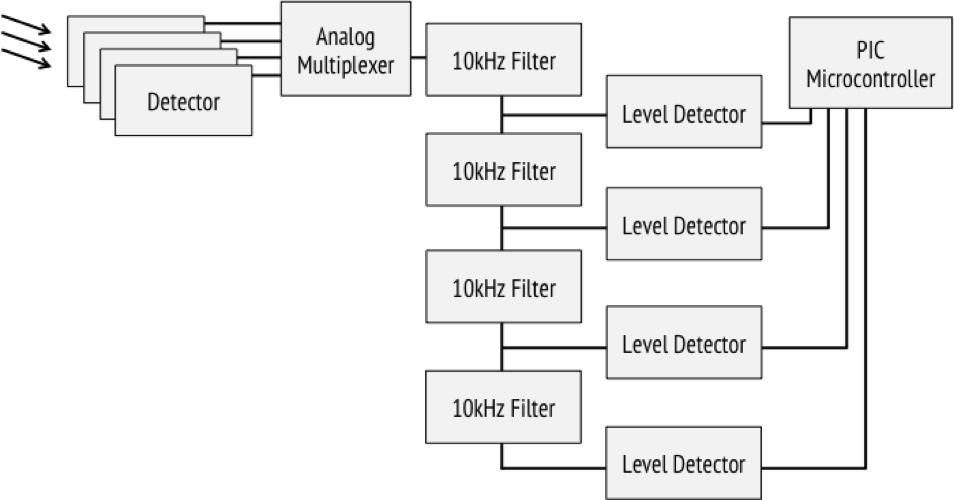

block diagram of receiver

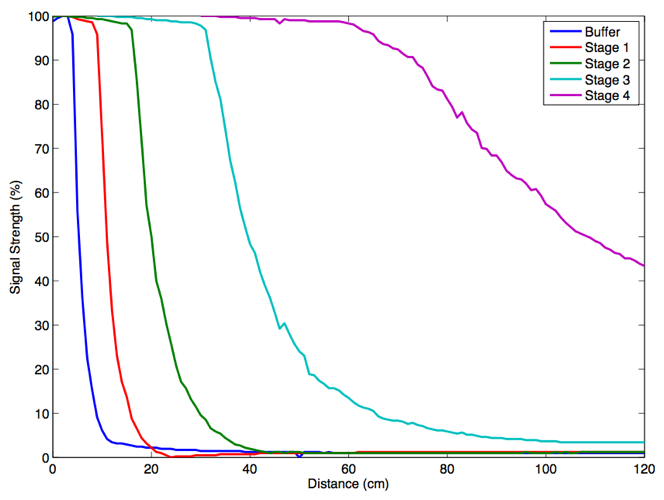

distance calibration

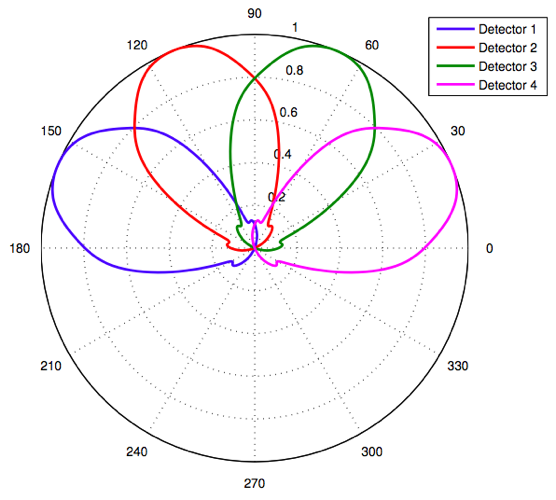

detector sensitivity

Collaborators: Dr. Alessandro Crespi, Dr. Juke Ijspeert (faculty)
Files: final presentation, report, circuit schematic
Tags: relative positioning, circuit design, SPICE simulation, filter design, embedded systems, infrared and optical communications, EPFL
Simulated Robotic Salamander Sept 2011 - Jan 2012

As a laboratory project for my Models of Biological Sensory-Motor Systems course, we investigated the locomotion and control of a 23 degree of freedom simulated salamander robot. We examined the different parameters controlling both walking and swimming using a sine-based controller and a central pattern generator (CPG). We found that, when optimizing the average speed through systematic tests and particle swarm optimization, the optimal gait and swimming trajectories are similar to the movement of actual salamanders. We improved our salamander model by adding stereovision and, using a biologically-inspired vision system with a neural network, created an autonomous salamander capable of tracking and walking toward objects.

walking salamander model

comparison of actual salamander and optimized controllers

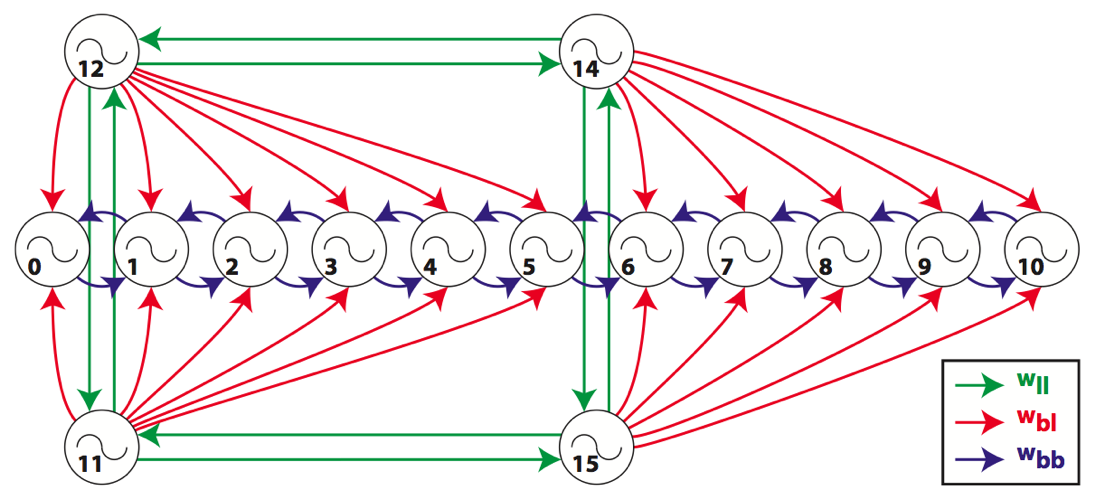

configuration of central pattern generator model

transition from walking to swimming

Collaborators: Frédéric Wilhelm
Files: draft report
Tags: robotics, salamanders, robotic controllers, central pattern generators, particle swarm optimization, visual system, Webots, EPFL
